Malarkey Lightning Special

A65 Frame completion.JPG
A65 Frame completion.JPG
press to zoom
A65 Swingarm fabricated.JPG
A65 Swingarm fabricated.JPG
press to zoom
Swingarm complete with spindle and spacers, rear engine plates and swingarm plates completed.JPG
Swingarm complete with spindle and spacers, rear engine plates and swingarm plates completed.JPG
press to zoom
Exhaust roses.JPG
Exhaust roses.JPG
press to zoom
Caliper carrier complete prior to polishing 001.JPG
Caliper carrier complete prior to polishing 001.JPG
press to zoom
Hubs polished (1).JPG
Hubs polished (1).JPG
press to zoom



Design: Simon Brewin, Malarkey Engineering.
The design inspiration was a mid 1960s BSA A65 Lightning. Design ques carried through to the 21st Century Lightning include the tank, side panels, and engine.

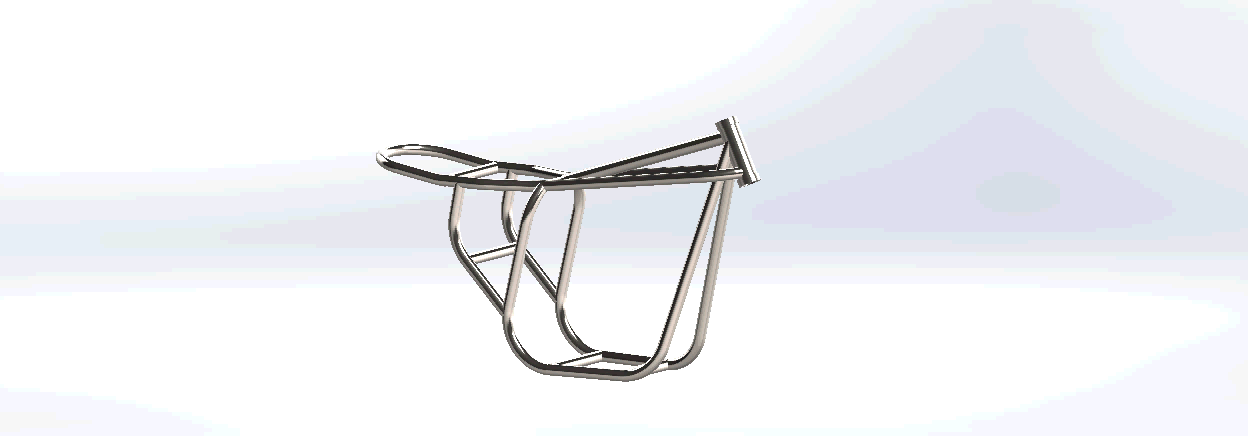

Frame: Metal Malarkey Engineering 1 off T45 steel bronze welded frame. Metisse Mk 3 inspired


Hubs: Thunderbird front. Sportster rear.

Rims: XS performance - Front 2.5 x 18
Rear 3.0 x 18


Tyres: Avon Road Rider - Front 110 / 80 / 18
Rear 130 / 70 / 18



Brakes: Thunderbird front 4 pot with Magura Master cylinder. Rear 2 pot, Brembo Master cylinder.

Front disc – 320mm semi floating.
Rear disc – 250mm fixed disc.




Forks and Yokes: Forks - Thunderbird 43mm.
Yokes – Thunderbird Sport



Rear Suspension: Hagon Classic half shroud

Engine: Built by JHS Racing including R & R Billet alloy conrods, high delivery oil pump,
alloy clutch basket and pressure plate.



Electronics: Motogadget M Unit, chrono classic speedo and keyless ignition. Tri spark electronic ignition, Oberon bar end indicators.

Exhausts: Metal Malarkey Engineering St/St TT style Armours silencers.



Rearsets: Barleycorn


Seat: P&P



Tinware: Fuel tank modified original steel Lightning. Oil tank modified standard. Side panels modified Lightning. Rear mudguard modified stainless. Front mudguard modified stainless including fork brace.



Powder coating: Redditch powder coaters, Cambrian Powder coaters.

Painting: We Spray Anything, Bromsgrove. Grahams Garage, Caerhowel


Wheel base: 1403 mm

Ground clearance: 215 mm
Rake: 25 degrees

Trail: 100 mm
Dry Weight: 155 kg






BSA A65 Lightning.png
Chrome spraying @ wesprayanything

Solidworks Design

Pro Bike Art - 2017
